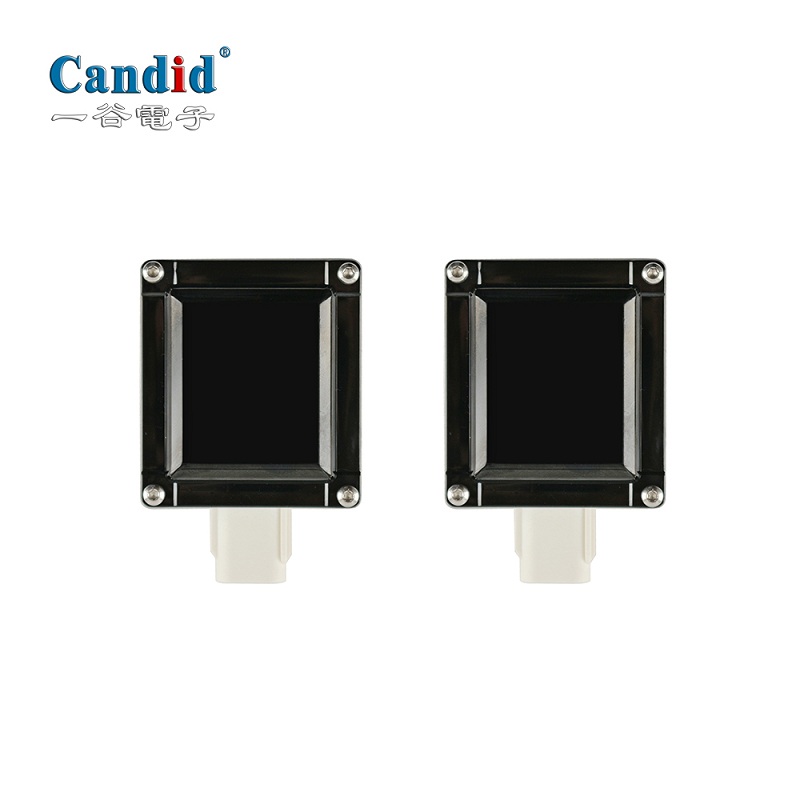

Sistemas de detección de puntos ciegos por radar de microondas BSD-24G
Features:
This BSD (blind spot detection) system is used for detecting the objects in the blind area of the rear and side field of the vehicle when you are driving. When a vehicle (or other moving object) enters into the detection range, the BSD system will alert the driver with LED light blinking or/and Buzzer sound beeping to let the driver know the safe timing for lane change, thus significantly lower the potential risks of collision accidents and save lives. It can also be applied for the purpose of vandalproof and antiriot for safeguard when you stay in a car.
This BSD (blind spot detection) system is used for detecting the objects in the blind area of the rear and side field of the vehicle when you are driving. When a vehicle (or other moving object) enters into the detection range, the BSD system will alert the driver with LED light blinking or/and Buzzer sound beeping to let the driver know the safe timing for lane change, thus significantly lower the potential risks of collision accidents and save lives. It can also be applied for the purpose of vandalproof and antiriot for safeguard when you stay in a car.
Funciones
24G Hz, high sensitive microwave radar sensor
Work under all kinds of weather and brightness condition
Suitable for both high speed and low speed driving status
Wide Detection range: 3x15 meters covering side and rear blind area
With LED light warning and buzzer sound warning, dual alert assurance

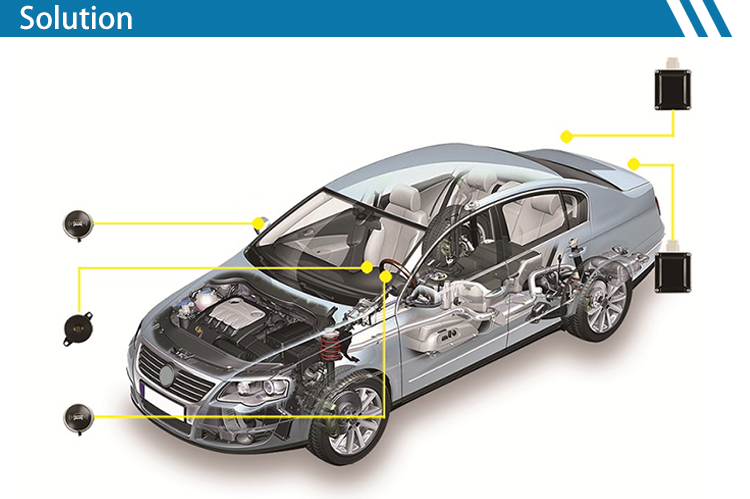

Hidden and non-drilling installation, no impact on vehicle’s appearance
Vehicle door open warning function optional
OE quality standard; extra long-term 3 years warranty
pass EMC & FCC certification testing
24g microwave radar bsd
Work under all kinds of weather and brightness condition
Suitable for both high speed and low speed driving status
Wide Detection range: 3x15 meters covering side and rear blind area
With LED light warning and buzzer sound warning, dual alert assurance
Hidden and non-drilling installation, no impact on vehicle’s appearance
Vehicle door open warning function optional
OE quality standard; extra long-term 3 years warranty
pass EMC & FCC certification testing
24g microwave radar bsd
Características técnicas
Frecuencia de funcionamiento | 24 GHz |
Rango de detección lateral | 3 metros |
Rango de detección trasera | 15 metros |
Ángulo horizontal | 120º |
Actualizar la tasa objetivo | 50Hz |
Precisión del rango de detección | 0,36 m |
Rango de error del ángulo de detección | 1º |
Rango de error de detección de velocidad relativa | ±0,25 m/s |
Velocidad relativa de la alarma | Cuando la velocidad relativa del vehículo objetivo frente al vehículo es inferior a 140 km/h, el sistema está funcionando. |
Velocidad mínima objetivo detectada | La velocidad relativa del objetivo es superior a 2,5 km/h. |
Tiempo de respuesta | 50 ms |
Túnel de antena | 1Tx 1R |
Salida de transmisión de antena | 12dBm |
Clasificación IP | IP67 |
Tensión de funcionamiento | De 9 V a 16 V (12 V típico) |
Consumo de energía | ≤500mA @12VDC |
Temperatura de funcionamiento | -40 °C–+85 °C |
Temperatura de almacenamiento | -40 °C–+95 °C |
