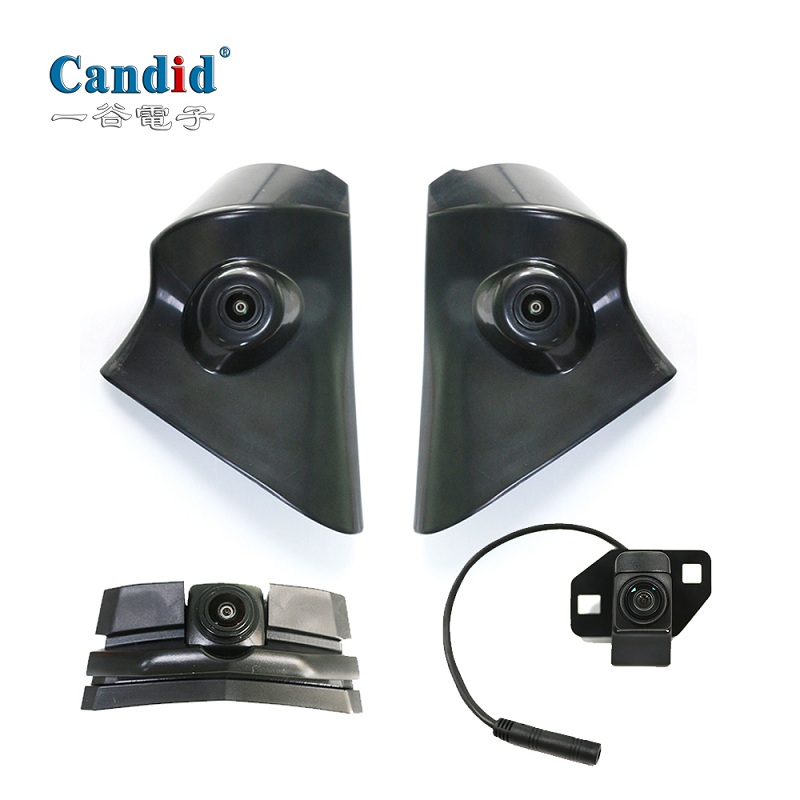

Sistema AVM de monitor de visión periférica 3D 3D de 360° - Alphard
Features:
This AVM system features a customized around view monitoring system for Toyota Alphard, make your driving and parking safer and more easily.
This AVM system features a customized around view monitoring system for Toyota Alphard, make your driving and parking safer and more easily.
Funciones
AHD 1080P high resolution images output
Customization designed and perfectly matched for Toyota Alphard, no impact on vehicle's appearance after installation
waterproof level: IP6K9K
auto calibration
with four wide view angle cameras, show panoramic view around the vehicle without any blind spot
Super starry night vision
OE quality standard, extra long-term warranty of 3 years
360 avm systems
Customization designed and perfectly matched for Toyota Alphard, no impact on vehicle's appearance after installation
waterproof level: IP6K9K
auto calibration
with four wide view angle cameras, show panoramic view around the vehicle without any blind spot
Super starry night vision
OE quality standard, extra long-term warranty of 3 years
360 avm systems
Características técnicas
sensor | SONY IMX307 (AHD) |
Modo TV | PAL/NTSC |
Sensor de imagen | 1/2.8 pulgada |
Rango de voltaje de operación | DC12V (7.5-16V) |
Corriente de trabajo | 94 mA±10 mA |
Consumo de energía | 1.128W DC12 V |
Salida de vídeo | 1.3±0.2Vpp 75Ω |
PÍXELES ÚTILES | 1920*1080 |
Iluminación mínima | 0.01Lux |
Amplia dinámica | 95dB |
Relación señal/ruido | 46dB |
Relación de resolución | 1080p |
Valor gamma | 0.45 |
Ángulo de la lente | 130 grados |
Humedad de operación | 85 % de humedad relativa |
Temperatura de funcionamiento | -20 °C ~ +70 °C |
Temperatura de almacenamiento | -40 °C ~ + 85 °C |
Función especial | Visión nocturna súper estrellada |
Aplicaciones
